Thermic Uav Air Quality Monitor

Home / Our Products / Thermic Uav Air Quality Monitor

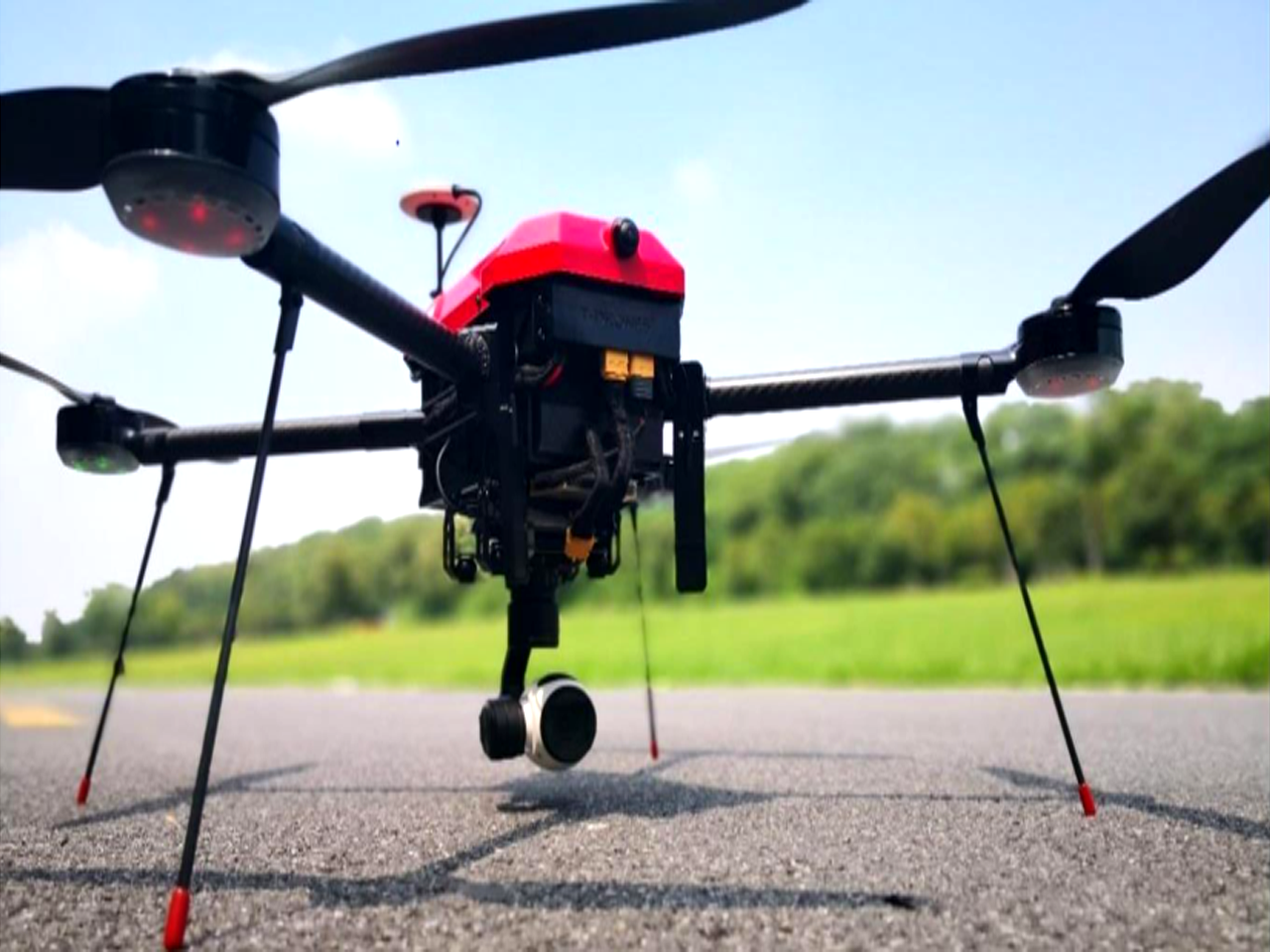

  •  The UAV AIR QUALITY MONITORS is long endurance flying platform designed to check the quality of air in Industries, Construction Site, Air pollution coming out of Industrial or any other Chimneys, at desired Height & location with the help of GPS. It is built to closely integrate with a host of powerful technologies, including the flight controller, video transmission system, long endurance Batteries and Management system, for maximum performance and quick setup. It is built with accuracy for reliable and operational capabilities.
  •  Total Integration the modular design makes the system easy to set up and ready to use in just minutes. Its propulsion systems simplify maintenance while actively cooled motors make for reliable operation during extended periods of time. All FLIR Vue/ Vue Pro cameras and gimbals are natively compatible, and a maximum payload of 1000 grams allows it to fly the Thermal camera with three axis gimbals along with Air quality Sensors to check the Quality of Air. When used with its customized controller and video transmission system it offers flawless gimbal operation and live video within entire transmission range along with the Display of Air Quality Parameters.
Technical Details

Unmanned Aerial Module
Take-off Weight 4~4.25kgs
Dimensions Unfolded: 500 X 500 X 300 (Length X Width X Height)
Diagonal Distance 700 mm
Max Ascent Speed 5m/s
Max Descent Speed 4m/s
Max Speed 45 km/h
Max Service Ceiling Above Sea Level 6000m
Max Flight Time 45-60 min
Max tilt Angle 45°
Operating Temperature Range 0°C to 60°C
GNSS GPS+GLONASS
Air Quality Module ICON-GYR6064
Operating Frequency 2.400-2.483 GHz
Operating Temperature -15°C to 60°C
On Board Air Quality Module
AIR QUALITY PARAMETERS:-
  •   Ozone
  •   Carbon Monoxide
  •   Sulfur Dioxide
  •   Nitrogen Dioxide
  •   NOx
  •   Particulate Sensor 10
  •   Particulate Sensor 2.5
  •   Lead
  •   Temperature
  •   Humidity
DISPLAY ON SCREEN ALL THE AIR QUALITY PARAMETERS WITH THE CONFIRM GPS LOCATION & A PICTURE OF THE AREA WITH REAL TIME CLOCK WHICH CAN BE STORED IN SD CARD FOR FUTURE REFRENCE

Benefits of using UAV Air Quality Monitors
  •   The air quality monitoring system is well-equipped with advanced sensor devices and gateway connectivity that is functioned to detect the presence of toxic gases within the premises. The solution is interlinked with the smart device of the user and allows him to take immediate actions.
  •   Air quality monitoring is an important tool for improving air quality, protecting public health, and ensuring compliance with regulations. It can also be used to identify pollution sources, monitor climate change, or support research and development.
  •   The data collected from air quality monitoring helps us assess impacts caused by poor air quality on public health.
  •   Air quality data helps us determine if an area is meeting the air quality standards devised by CENTRAL POLLUTION CONTROL BOARD, WHO or OSHA.
  •   The data collected from air quality monitoring would primarily help us identify polluted areas, the level of pollution and air quality level.
  •   Air quality data helps us understand the health issues of any location due to air pollution. We can also assess and compare the short term and long term diseases/disorders which are a result of air pollution.
  •   Based upon the data collected control measures can be devised for protection of environment and health of all living organisms.
  •   It is an effective concept that contributes to measuring the temperature and humidity ratio within any industrial premises. It helps the authorities in maintaining a proper ambiance required for the workers to work under certain environmental conditions by keeping real-time control on the solution. The temperature and humidity monitoring helps analyze the situation and maintains a favorable environment as required. Moreover, in the case of mining industries, an air quality monitoring system detects the oxygen levels, thereby keeping the employees safe in case of any decrease in the levels. It allows them to evacuate the premises as soon as there is any decrease in the oxygen levels.
  •   Human Health
  •   Effective Air Monitoring
  •   Toxic Gas Detection
  •   Temperature and Humidity Measurement
