Thermic Incinerators

Home / Our Products / Thermic Incinerators

INTRODUCTION
Laboratories often generate various types of waste, including biological, chemical, and other hazardous materials, which require proper disposal to ensure the safety of the environment and individuals working in the lab. THERMIC Portable incinerators have emerged as efficient and versatile solutions for the on-site disposal of laboratory waste. These compact and mobile devices offer a controlled and environmentally responsible method for the combustion of different types of laboratory waste, minimizing the risk of contamination and ensuring compliance with regulations.
THERMIC Portable incinerators are designed to handle a range of materials, including disposable lab equipment, contaminated glassware, and other items that may pose a risk if not disposed of properly. Unlike traditional fixed incineration systems, portable incinerators provide flexibility by allowing labs to address waste disposal needs on-site, reducing the need for off-site transportation and associated risks.

The key advantages of THERMIC portable incinerators include their mobility, ease of use, and the ability to maintain a controlled and high-temperature environment for efficient waste destruction. These incinerators are equipped with advanced features such as temperature monitoring, automated controls, to ensure safe and effective waste disposal without compromising environmental standards.
TECHNICAL DETAILS

Incinerator for Laboratory Waste
Having dual chamber with 2 leading chamber (850 Deg C and 1000 Deg C) with stack complete digitally Touch Screen Controller With USB port, workable on 440 volt. Portable Incinerator should be most effective for Bio Waste. Working Principle will be Furnace type Associated with Burning refuse, Brick lined enclosures. Combustion chamber should well insulated and has high temperature safe dozing and exhaust system. It has long and safe treatment of flew gases for safe disposal through long stack. Temperature of Burning Chamber upto 850 Deg C and for secondary chamber 1000 Deg C
Technical Specifications
Heaters/Elements: Made of a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 1400°C (2550°F). The alloy is characterized by high resistivity and very good oxidation resistance (14 gauge) for primary chamber & (17 gauge) for secondary chamber.

Insulation:- Heavy insulation is done with combination of insulating bricks & silicon fiber insulating blanket to avoid any heat loss

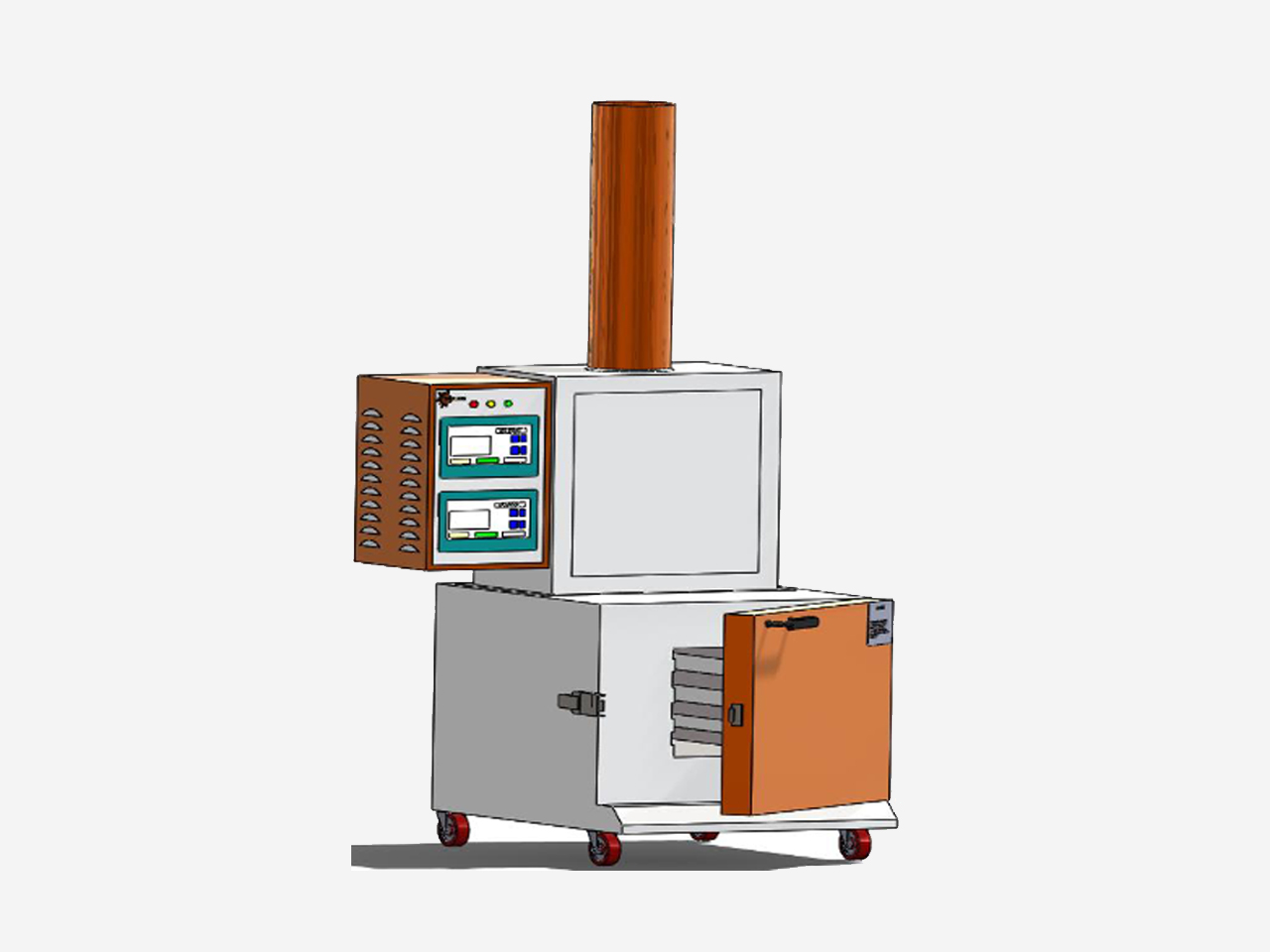

THERMIC Incinerators are Front Loading Type
It is portable in nature, which can easily placed in a small space in a corner of building. Temperature:- Temperature of Primary/Burning chamber up to 850 Deg C and for secondary chamber 1000 Deg C.
Portable Whole unit made of M.S. on Angle painted is mounted on sturdy wheels. Control Panel:- Control Panel consists of Two number of HMI Controller with USB Port to transfer the data, Main Line Indicator, M.C.B. for safety.
  •   TEMPERATURE CONTROLLER: HMI CONTROLLER TOUCH SCREEN
  •   DISPLAY SIZE: MIN 4.3” TFT TOUCH SCREEN
  •   RESOLUTION:- 480*272,
  •   TOUCH PANEL:- RTP/CTP
  •   PROCESS TIME: 0 -999 MIN
  •   CONTINIOUS DISPLAY OF TEMPERATURE, TIME, & DATE
  •   HIGH & LOW TEMPERATURE ALARM
  •   PASSWORD PROTECTED
  •   DATA TRANSFER PORT:- USB PORT
  •   PROGRAMABLE

Request a Quote
