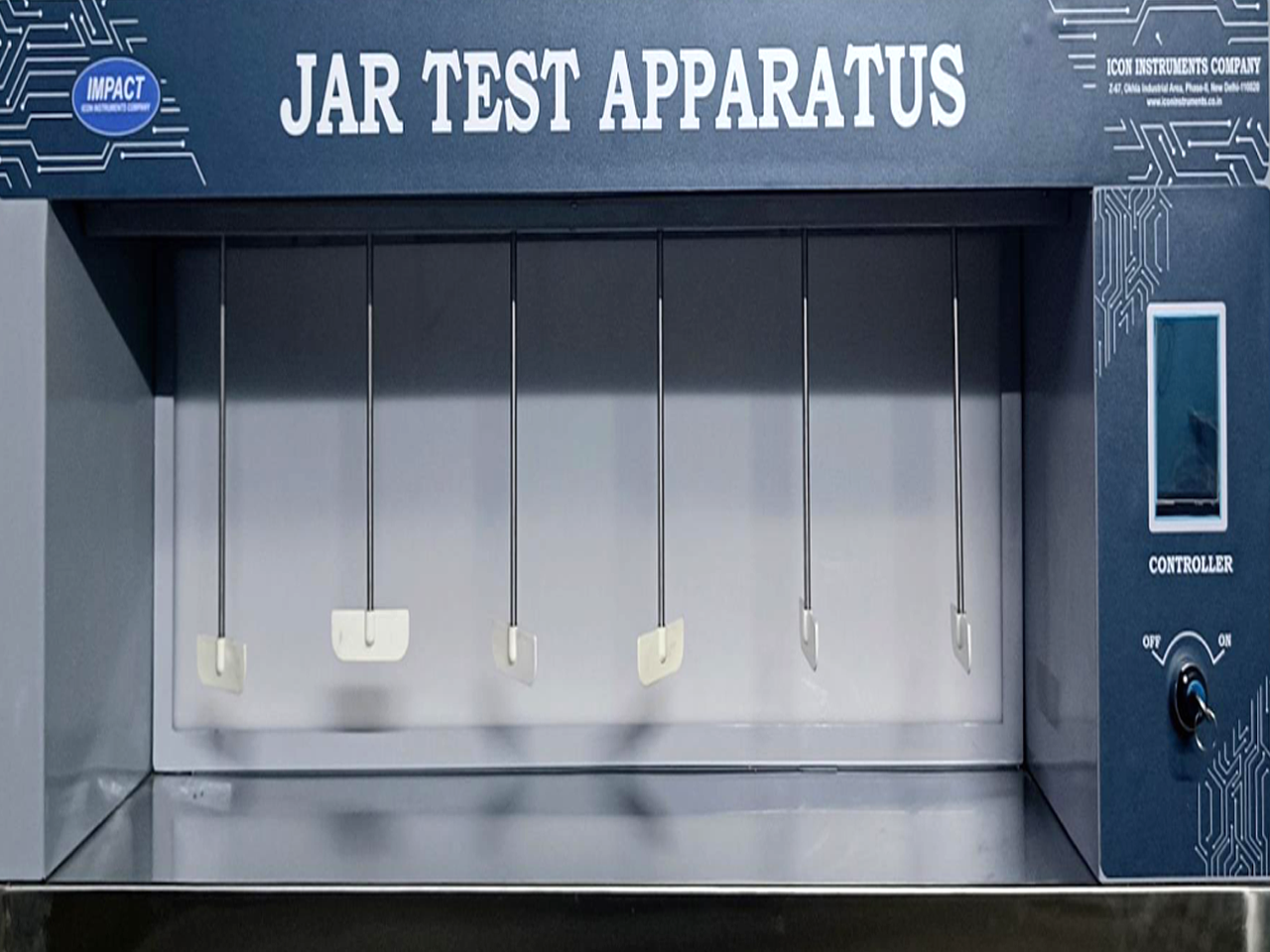

Impact Jar Test Appratus

Home / Our Products / Impact Jar Test Appratus

INTRODUCTION

Designed for Floc formation Test in water treatment plant.
Uniform Stirring of up to 6 samples simultaneously.
Variable speed 20 to 100 RPM.
Heavy duty 1/20HP motor with gear train mounted on a mild steel housing.
Supported by four rods on a bench.
Stainless steel stirring paddlers with Adjustable height.
Locking collars or stirring rods permit adjustment height of paddle height.
Spacing of 6" (150mm) between rod permit use up to 1000ml Beaker.

TECHNICAL DETAILS

Material	CRC / MS sheet duly powder coated
Power Consumption	220/230V AC ± 10% supply 50HZ single Phase
Motor	1/20HP motor good quality
Display	Digital RPM meter /Timer/DC-Drive for low RPM (On Required)
llumination	By Tubes Light (With choke + Stirrer) Duly covered by Perspex sheet having control switch on the Equipment

Material of Construction (MOC):
Body Made of MS Powder coated
Table made of Stainless Steel 304 grade
Spacing of 6” between rod permit use upto 1000 ml Beaker
Illuminated back panel
Stirring rods adjustable in height without tools
Digitally selectable speed from 10 to 100 rpm

Identical speed and time for all positions for comparable results
Reliable and repeatable results from stirring quality
Precise speed from an electronically controlled motor
Strong resistance to chemical and mechanical corrosion
High visibility displays for speed and time
6-place model

A) Feather Screen Touch Digital Controller,
B) Touch Screen 3.5” Display
C) Real Time Clock
D) Continuous display of RPM, Time, Day & Date, Alarm

E) Password Protected operations,
F) USB port
G) Buzzer when time is completed
H) Light ON/OFF

Power Consumption: 220/230V AC± 10%, AC Supply Single Phase 50Hz | Duty Cycle: Continuous
