Laboratory Stations will be modular and portable.
The complete station will provide ease of chemical analysis. The stations
will be water proof, chemical resistant and weather proof to reduce
weathering effects and corrosion. The more details are as under:-
- Work Top: -
Jet-Black Granite “OR” Premium Black with chamfer moulding at
the front & groove at the bottom to avoid chemical spillage on the
modules or on the floor Work top will be made of 16 to 19mm thick.
Worktop will be fixed with the module by foam tape and all joints are
sealed thru Epoxy sealant, with low water absorption.
- Material of
Construction: - Material of construction will be made of 1 mm
GALVANIZED PLAIN SHEETS (GP SHEETS) with 120gm zinc coating. Resistance
to corrosion & High impact strength, Powder coated
- Under Bench
Module: - Under bench module will be made of 1 mm GP sheets. The
entire module is made up of GP panels and are bolted/rivetted for
achieving maximum strength with high corrosion resistance. The shutters
or doors are mounted to the modules by Soft close hinges with soft
closing mechanism which are openable to 95 degree. Drawers are mounted
with the ball bearing based soft touch telescopic slides which are
sturdy & able to take load up to 45 kg.
- Skirting:-
Skirting should be made of GI/GP Sheet with No space is left at the
bottom of the cabinet with atleast 3” in height
- Reagent Rack:
- Reagent racks will be two tiers made of GI/GP Sheet powder coated

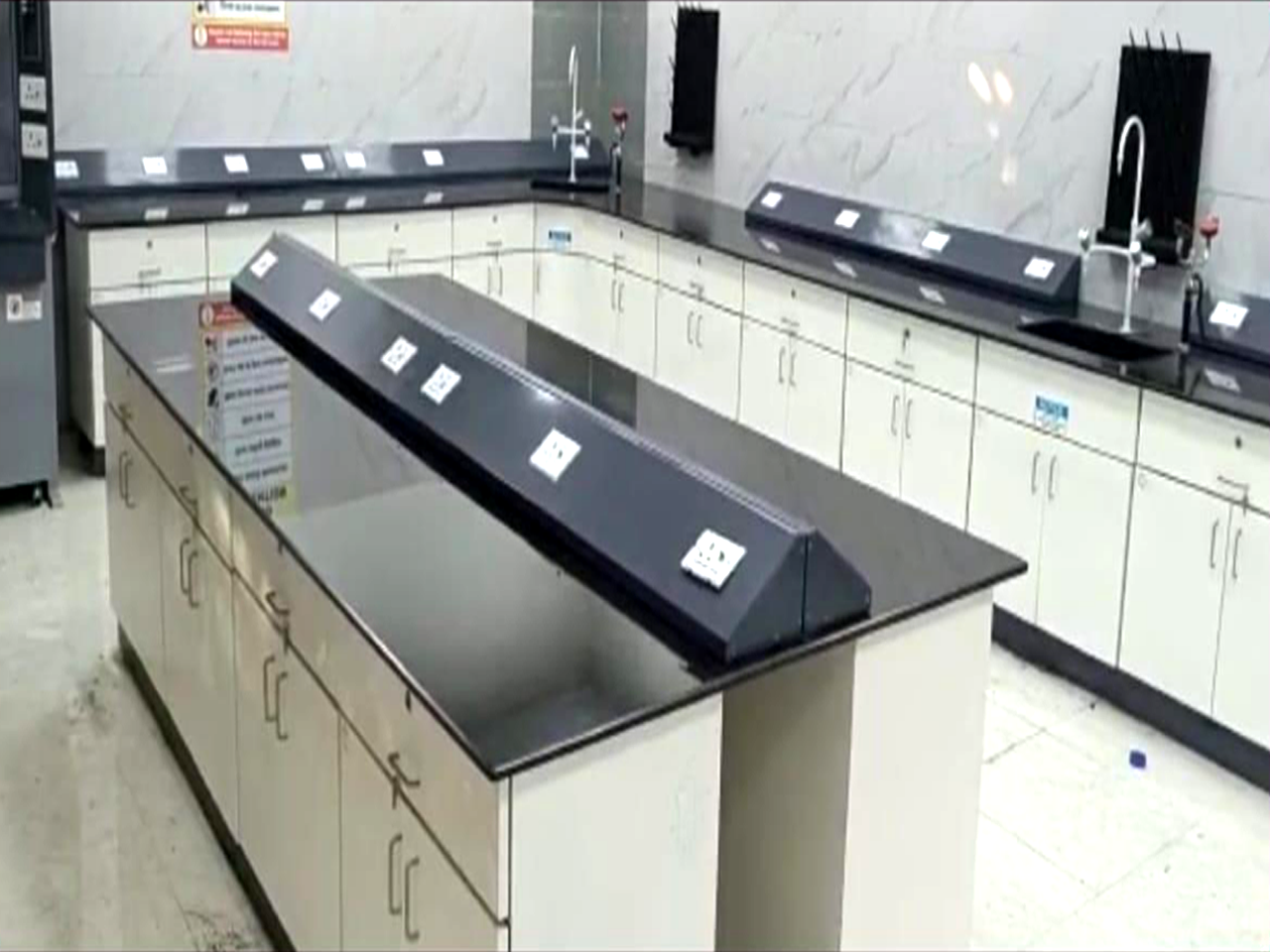

- Island
Table:- Top & Bottom rack 300 mm Clear space and outer 380 mm
Overall height: 750 mm
- Electrical
Trunking: - Island Table: Triangular Electrical Trunking of 125 mmD
x 125 mm H
- Wall Table:-
Triangular Electrical Trunking of 125mmD x 125mmH
- Switch &
Sockets: - North-West / Crabtree make: Electrical Socket with MCB
15amp with wiring
- Powder
Coating: - Complete module & frame work are processed with
multi-tank pre- treatment and finished with highly corrosion resistant
'Kansai Nerolac/equivalent' epoxy powder coating with minimum 100
microns thickness
