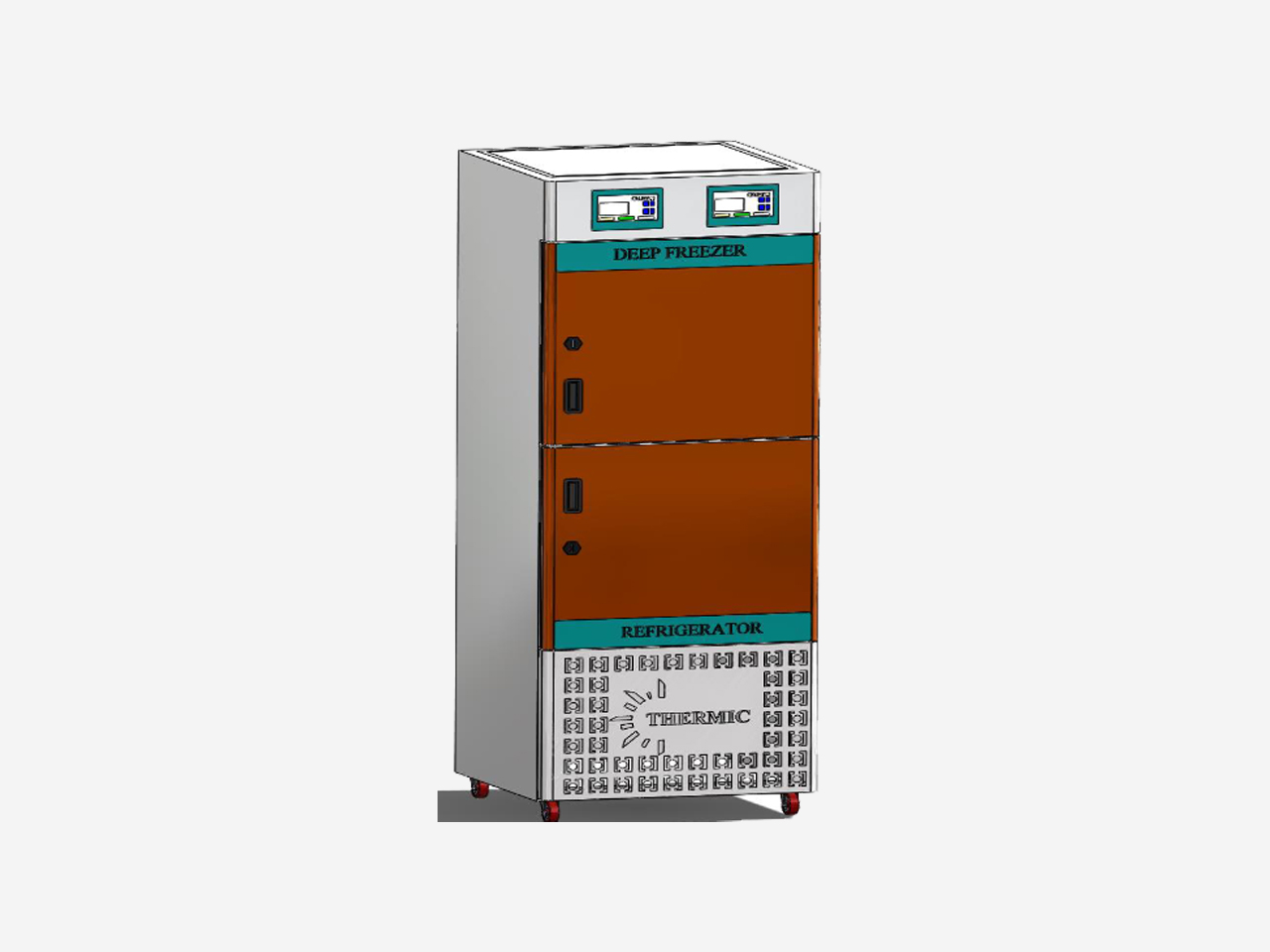

Dual Chamber Laboratory Freezer

Home / Our Products / Dual Chamber Laboratory Freezer

INTRODUCTION
THERMIC laboratory dual-chamber freezer is a sophisticated and essential piece of equipment designed to provide precise and controlled storage conditions for various scientific and medical applications. This specialized freezer consists of two distinct compartments, each offering independent temperature regulation, making it a versatile solution for storing a diverse range of samples and specimens.

The primary purpose of a dual-chamber freezer is to maintain optimal storage conditions for sensitive materials, such as biological samples, reagents, vaccines, or other temperature-sensitive substances. The dual-chamber design allows for the segregation of different types of samples, preventing cross- contamination and ensuring the integrity of research or medical experiments.
The features of a THERMIC laboratory dual-chamber freezer typically include advanced temperature control systems, employing advanced technology to maintain a consistent and precise temperature environment. This level of control is crucial for preserving the viability and stability of stored materials over extended periods.

Additionally, THERMIC freezers come equipped with alarms and monitoring systems to alert users in case of temperature deviations, power failures, or other critical events. This enhances the safety and reliability of the storage environment, protecting valuable research materials from potential damage.

The dual-chamber configuration provides flexibility, allowing researchers and laboratory professionals to store samples at different temperature settings within the same unit. This adaptability is particularly beneficial when dealing with diverse research requirements or when storing materials with varying temperature preferences.

THERMIC laboratory dual-chamber freezer is a sophisticated tool that plays a pivotal role in preserving the integrity of scientific and medical samples. Its dual-compartment design, precise temperature control, and advanced monitoring features make it an indispensable asset in laboratories, pharmaceutical facilities, and research institutions where maintaining optimal storage conditions is paramount.

Dual Chamber freezer having two chamber 1St Chamber for Ambient to -20 deg C & 2nd Chamber having temperature Range of 0 to 20 Deg C. Having two different Temperature Controller & Different access Gates

TECHNICAL DETAILS
Outer body made of GI sheet duly powder coated / Stainless Steel (S.S. 304 Grade). Inner chamber and trays made of Stainless Steel (S.S.304 Grade). Temp range: +20 to Minus 20 Deg C is controlled though a Advanced Digital Temperature indicator-Cum-Controller. Advanced ECOFRIENDLY COMPRESSORS with CFC-Free refrigerants. Extra thick high density foamed in- place PUF insulation minimizes cooling losses. Available in Vertical type models Having two separate chambers to maintain different temperature
CHAMBER 01
Temp: -20 Deg C (MINUS 20 DEG C)
Capacity: - 250 Liters
With Touch Screen Controller
  •   Refrigerated Low Temperature cabinet.
  •   Better puff Insulated to avoid cooling loss.
  •   Silent energy saving compressor.
  •   Polish 304 grade Stainless Steel sheet interior.
  •   Outer G.I./ CRC Sheet powder Coated
  •   Door Front model duly PUF insulted
  •   Temperature Range : Up to - 20°C
  •   Temperature Stability : ± 1°C
  •   Shelves: Stainless Steel (02 number)
  •   Inner Toughened Glass Door
  •   Instruments should be on wheels for easy movement with wheel lock facility
  •   Copper Condenser with polymer coating Film Thickness 25 to 35 microns per coat
  •   Material : Outer GI duly powder coated & Inner Stainless Steel 304 Grade
  •   Power consumption : 220/230V AC ± 10% Single Phase 50HZ
  •   Compressor : Reciprocating compressor (IMPORTED)
  •   Refrigerated : R 22 / R 134 Duty Cycle : Continuous
OPTIONAL:- COMPLETE MADE OF STAINLESS STELL 304 GRADE/ GRAPH RECORDER.
CHAMBER 02
Temp 0 to 20 Deg C
Capacity: 250 Liters
With Touch Screen Controller
  •   Refrigerated Temperature cabinet
  •   Better puff Insulated to avoid cooling loss.
  •   Silent energy saving compressor
  •   Polish 304 grade Stainless Steel sheet interior.
  •   Outer G.I./ CRC Sheet powder Coated
  •   Door Front model duly PUF insulted
  •   Temperature Range : Up to 0 TO 20 Deg
  •   Temperature Stability : ± 1°C
  •   Shelves: SS (2 number)
  •   Toughened Glass Inner Door
  •   Instruments will be on wheels for easy movement with wheel lock facility
  •   Copper Condenser with polymer coating Film Thickness 25 to 35 microns per coat
  •   Material : Outer GI duly powder coated & Inner Stainless Steel 304 Grade
  •   Power consumption : 220/230V AC ± 10% Single Phase 50HZ
  •   Compressor : Refrigerated : R 134 Duty Cycle : Continuous
Having two Number of Touch Screen Controller for each chamber to control the different temperature at different chamber
TOUCH SCREEN CONTROLLER
  •   TEMPERATURE CONTROLLER: HMI CONTROLLER TOUCH SCREEN
  •   DISPLAY SIZE: MIN 4.3” OR 7” TFT TOUCH SCREEN
  •   TOUCH PANEL:- RTP/CTP
  •   GRAPHICAL REPRESENTATION OF TIME & TEMPERATURE
  •   PROCESS TIME: 0 -999 MIN
  •   CONTINIOUS DISPLAY OF TEMPERATURE, TIME, & DATE
  •   HIGH & LOW TEMPERATURE ALARM
  •   PASSWORD PROTECTED
  •   DATA TRANSFER PORT:- USB PORT
  •   PROGRAMABLE
  •   DOOR OPEN ALARM FOR MORE THAN USUAL TIME
  •   ELECTRIC REQUIREMENT: 230V/50Hz
